Guidance for the Installation of the Floor

Guide: How to engage using your hands

Step 1

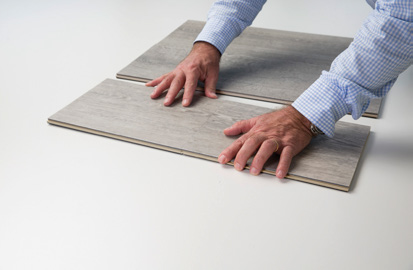

Start by engaging the plank on the long side (angle-system)

Step 2

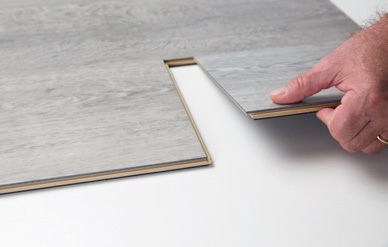

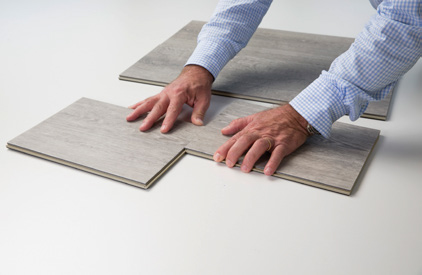

Slide the plank until it reaches the short side of the next plank

Step 3
Let the plank drop gently

Step 4

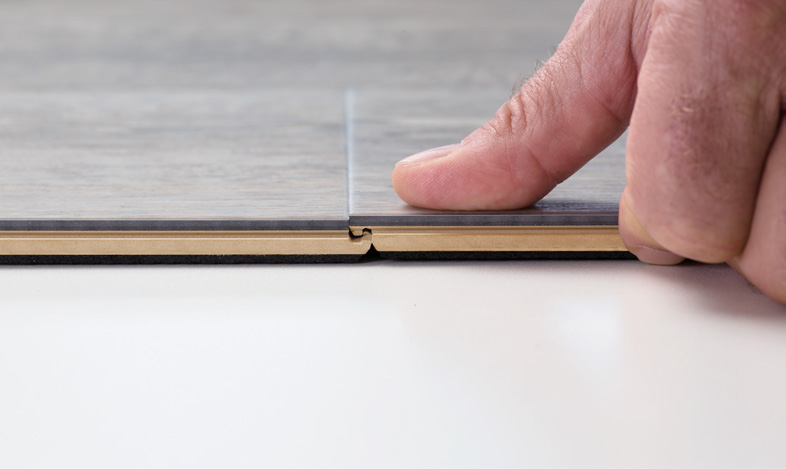

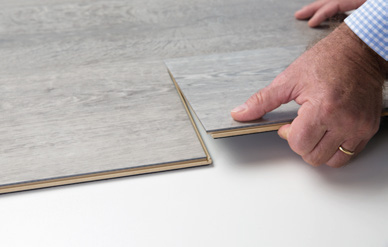

Press with your thumb on both ends of the short side

Step 5
Continue pressing until you hear the “Click” sound of the one piece drop-lock system

Step 6

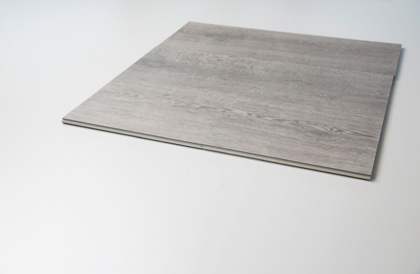

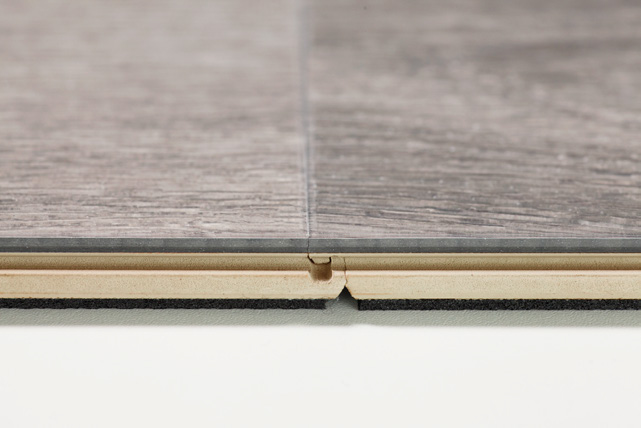

Planks are now fully locked

Guide: How to engage using a hammer

Step 1
Start by engaging the plank on the long side (angle-system)

Step 2
Slide the plank until it reaches the short side of the next plank and drop gently

Step 3

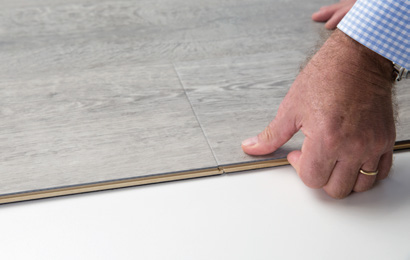

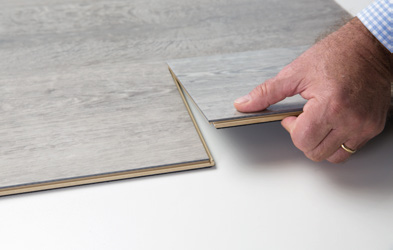

Press with your thumb on both ends of the short side

Step 4
Continue pressing until you hear the “click” sound of the one piece drop-lock system

Step 5

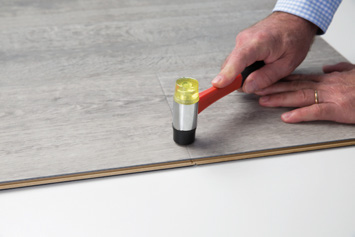

Hit gently with a soft-faced hammer on both sides of the short end

Step 6
Planks are now fully locked

How to disengage

Step 1
Always start by disengaging on the long side

Step 2

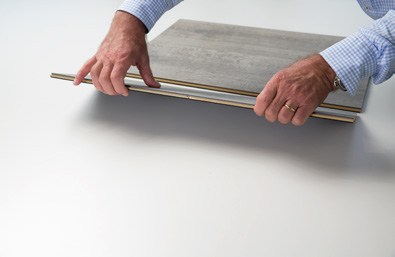

Grab the planks with both hands and gently lift at the same time until the planks disengage

Step 3
Place the planks gently on the floor

Step 4

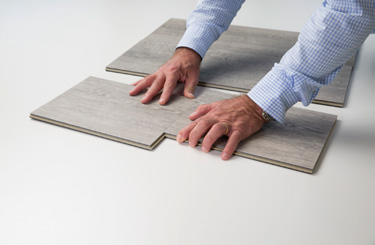

To disengage on the short side, slide the planks in the opposite direction

Step 5

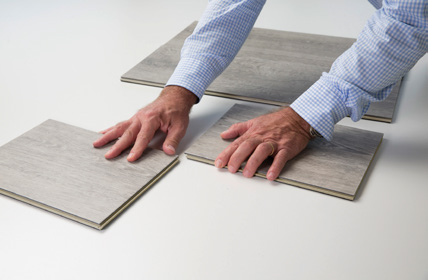

Press the planks gently while sliding

Step 6
Continue sliding until the planks are fully separated
